PS5 HDMI port repair: no signal and black screen, fixed for £55 flat
The console powers on, the fan spins, and the TV insists there’s nothing plugged in. Nine times out of ten that’s the HDMI port, and it’s the most common way a healthy PS5 gets written off. We replace the port at board level, under a microscope, with a genuine-spec part, and post it back working with a 12-month warranty on the repair.
PS5 HDMI repair pricing
Book with a £15 deposit, pay the balance when the repair is done. Any pad or trace damage is photographed and quoted before chargeable work starts.
Does your PS5 do any of this?
All six of these usually trace back to the same small connector on the motherboard.
No signal on the TV
The console starts, the light comes on, but every TV and every input reports “no signal”. The port has stopped making a reliable connection to the cable.
Black screen, console on
You can hear it running, sometimes even hear game audio through a headset, but the screen stays black. The video lines through the port are the usual failure point.
Bent or pushed-in pins
Shine a torch into the socket: the tiny pins should sit in two neat rows. If any are flattened, twisted or pushed back, the port needs replacing, they can’t be reliably re-bent.
Cable falls out
The plug no longer clicks home and drops out at the slightest nudge. The port’s metal shell has spread or its anchor points have cracked away from the board.
Works when wiggled
Picture appears only with the cable held at an angle, or cuts in and out when someone walks past. Intermittent contact like this only ever gets worse.
Snapped tongue inside
The thin plastic tongue that carries the pins has broken off, sometimes it comes out stuck inside the cable. Nothing to lose here: only a new port fixes it.
This isn’t an unplug-and-swap part
The HDMI port is soldered straight to the motherboard by a row of tiny surface-mount legs. Replacing it properly is micro-soldering, not screwdriver work.
Board-level work, done carefully

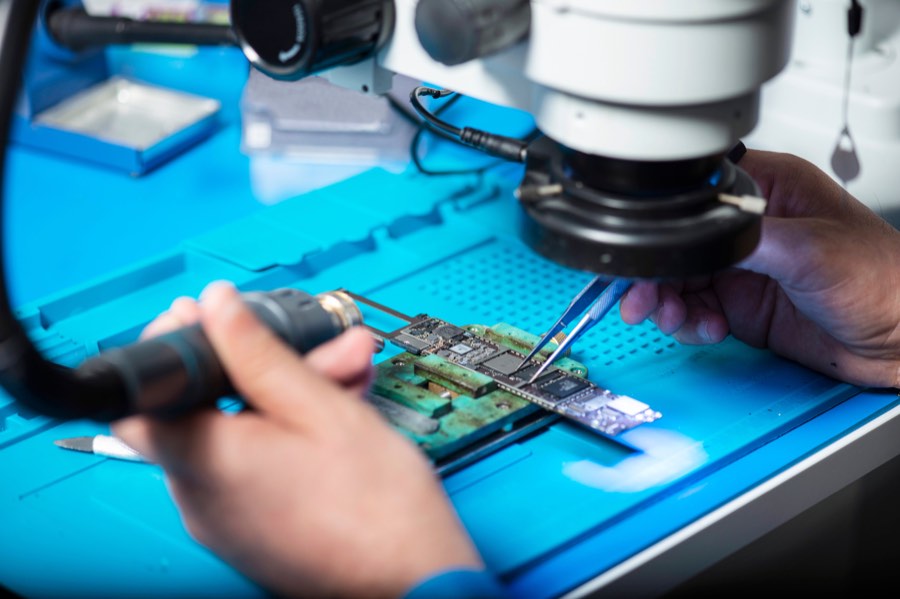

Each leg of the port is soldered to a pad on the motherboard not much bigger than a grain of sand, with signal traces running away underneath. Getting the old port off without tearing those pads takes controlled hot air and patience; getting the new one on takes a microscope and a steady hand. Done roughly, a £55 repair becomes a dead motherboard, which is why we don’t rush it and why cheap-and-fast port swaps so often come back around.
If a console arrives with pads or traces already torn, usually from a hard yank on the cable or a previous repair attempt, that’s more involved rebuild work. We photograph what we find and quote it, typically £20 on top, before any chargeable work. If you’d rather not proceed we return the console and only the deposit is used.

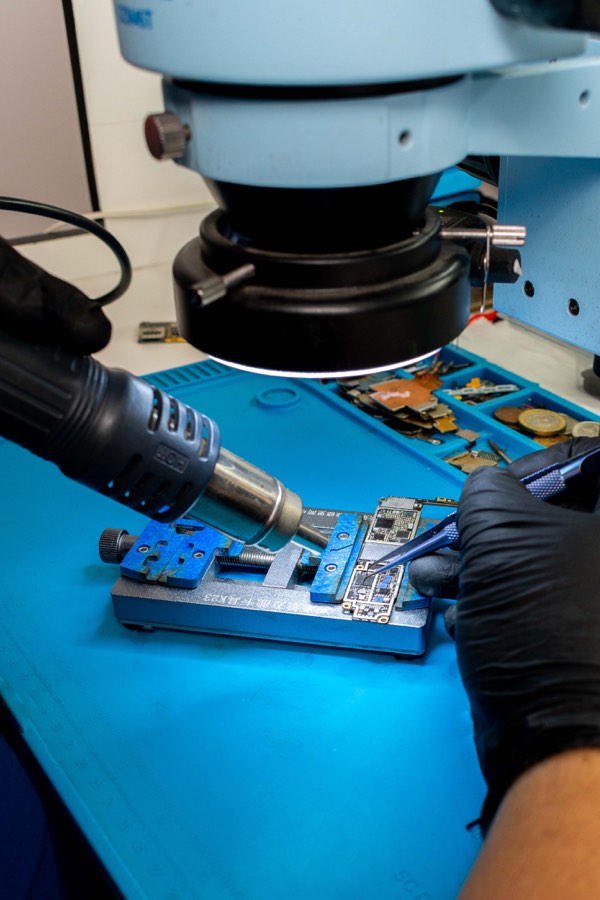

- Old port removed with controlled hot air
- Pads cleaned, dressed and inspected under the microscope
- Genuine-spec port fitted, every leg soldered individually
- Surrounding joints inspected, then tested to a bench TV
One job, one flat price
Book with a £15 deposit. You post it to us, tracked return postage is in the price. Balance on completion, before return post.
PS5 HDMI port replacement
Standard PS5, PS5 Slim, PS5 Pro and Digital Edition. No signal, black screen, bent pins, loose port or snapped tongue.
£55
- Genuine-spec replacement port fitted under the microscope
- Surrounding solder joints cleaned & inspected
- Booted and tested to a bench TV before return
- Data, saves and games untouched
- Return tracked postage included
- 12-month warranty on the repair
A word on warranty seals. Replacing the port means opening the console, which disturbs the warranty seal. In practice almost every PS5 with a failed HDMI port is already outside Sony’s own 12-month warranty. If yours is still within it, go to Sony first, they should fix it free, and we’d rather tell you that than take the job.
Not sure it’s the port? A small number of no-signal PS5s are actually the HDMI transmitter IC on the board. If a new port doesn’t cure yours, we say so straight away and quote the IC-level work through our board-level soldering service, with what you’ve already paid credited against it.
Every PS5, one price
The port differs between revisions, so we stock the correct genuine-spec part for each and fit the one that matches your board.

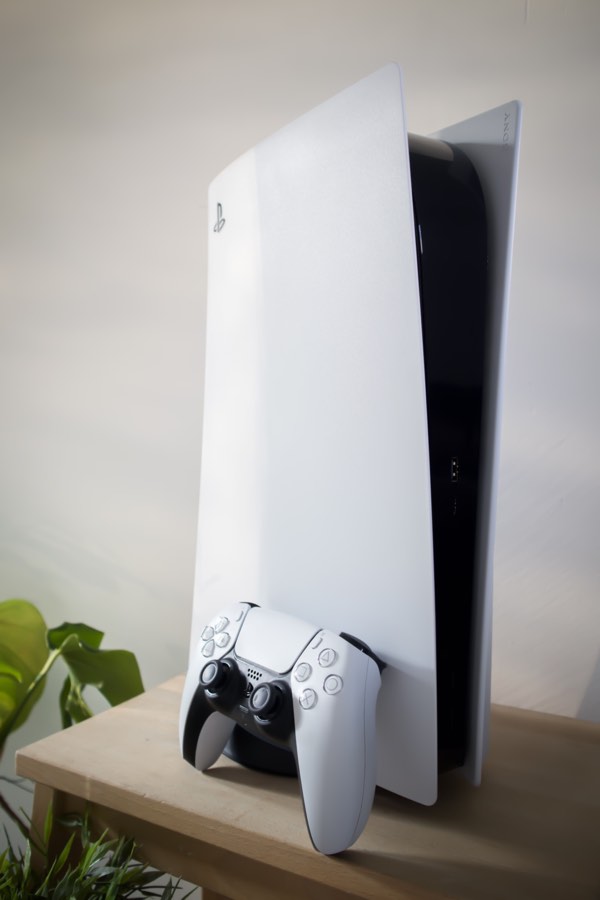

PS5 (launch model)
Disc and digital versions of the original chunky PS5, CFI-1000 through CFI-1200 series. The most common console on our bench for this fault.
PS5 Slim
The slimmer 2023 revision, disc and digital. Different board layout, same weak point at the back, same £55 flat price.
PS5 Pro
Sony’s flagship uses the same style of surface-mount HDMI 2.1 port, and it fails the same way. Covered at the same flat price.
Digital Edition
All digital-only variants are covered. No disc drive changes nothing about the port or the price.
After a DIY or shop attempt
We regularly take consoles other people have had a go at. Be upfront about it in the booking notes and we’ll assess honestly; torn pads are quoted before any work.
Something else wrong too?
Overheating, disc drive faults, power problems? Mention it when you book, or start with the £40 redeemable assessment and get a full diagnosis first.
What the £55 includes
A port swap done properly is more than a port swap. This is what the price buys.
| New port | Genuine-spec HDMI 2.1 port matched to your console revision, not a loose-tolerance clone that fails again in six months |
| Removal | Old port lifted with controlled hot air so the pads and traces underneath survive; no prying, no brute force |
| Fitting | Every leg soldered individually under the microscope, anchor points secured so the new port takes cable strain properly |
| Surrounding joints | Nearby components and joints cleaned, inspected under magnification and reflowed if anything looks marginal |
| Testing | Booted to a bench TV, picture and sound confirmed, cable inserted and removed repeatedly and strain-tested before reassembly |
| Your data | SSD, saves, games and accounts untouched; the console is not opened beyond what the repair needs |
Return tracked postage is included in the £55. Pad or trace rebuilds, when needed, are photographed and quoted first, typically £20.
From your TV stand to ours and back
Book online
£15 deposit secures your slot. We email the postal address straight away.
Post it in
Box the console well padded, no cables or controller needed, and drop it at any Post Office.
The repair
Old port off with hot air, new genuine-spec port on under the microscope, joints inspected, tested to a bench TV.
Back to you
Balance settled on completion, then posted back tracked with a 12-month warranty on the repair.
Not quite what you need?
Board & component soldering
Faults beyond the port, HDMI IC work, liquid damage or an unknown no-boot? Our board-level repair service starts with a £40 redeemable assessment.
Nintendo Switch repair
Cracked USB-C port, no charge or no dock output on a Switch? Our Switch repair service covers the same style of board-level connector work.
3D-printed replacement parts
Broken stand clips, cracked panels or a missing bracket on the same console? We reprint unobtainable plastic parts in engineering materials.
Common questions
How much does a PS5 HDMI port repair cost in the UK?
£55 flat, covering the standard PS5, PS5 Slim, PS5 Pro and Digital Edition. That includes a genuine-spec replacement port, cleaning and inspection of the surrounding solder joints, full testing and tracked return postage. You book with a £15 deposit and pay the balance when the repair is done. The only extra we ever quote is pad or trace damage, typically £20, and we always ask first.
How do I know it’s the HDMI port and not the TV or cable?
Rule out the cheap stuff first: try a different HDMI cable, a different input on the TV, and if possible a different TV. Then look into the console’s HDMI socket with a torch. Bent or flattened pins, a loose wobbly fit, or bits of broken plastic are all port damage. If the console powers on normally (light comes on, fan spins) but the screen stays blank on every cable and TV, the port is the most likely culprit.
How long does the repair take?
2 to 3 working days on the bench once the console arrives, so with post in both directions you should allow about a week door to door. We email you the postal address as soon as you book.
Will my data, saves and games survive?
Yes. An HDMI port replacement is done on the motherboard and never touches the SSD, so your saves, installed games and accounts are exactly as you left them. We don’t open the console any further than the repair needs. As with any repair, having PS Plus cloud saves switched on is never a bad idea, but nothing about this job puts your data at risk.
What if the solder pads or traces are damaged?
Sometimes a port arrives with torn pads or lifted traces underneath, usually from a hard yank on the cable or a previous repair attempt. That needs extra rebuild work, typically £20 on top of the £55. We photograph the damage and send you the quote before any chargeable work; if you’d rather not proceed we return the console and only the deposit is used.
Is it worth repairing, or should I sell it for parts?
At £55 all-in with a 12-month warranty, repair wins comfortably. A working PS5 is worth several times that secondhand, a no-signal spares-or-repairs one goes for a fraction of it, and a replacement console costs far more than the fix. Unless the console has other serious problems, repairing the port is the clear call.
Do you fix HDMI IC (retimer) faults as well?
Yes. A small number of no-signal PS5s turn out to be the HDMI transmitter IC (sometimes called the retimer) rather than the port itself. If a new port doesn’t cure yours, we tell you straight away and quote the IC-level work through our board-level soldering service, with what you’ve already paid credited against it. You never pay twice for the same fault.
How should I pack a PS5 for posting?
The original box is ideal if you still have it; otherwise any sturdy box with a good 5cm of bubble wrap or padding on every side. Send the console only: no controller, no cables, no stand, and take any disc out of the drive first. We email you the postal address as soon as you book, so all you need is a box and a tracked postage service.
Get your PS5 back on the TV
£55 flat, genuine-spec port, tracked return postage included and a 12-month warranty on the repair. Serving the whole UK by post from Basingstoke.
